Complete Guide to Choosing Conductor Stringing Blocks for Construction & Procurement

Complete Guide to Choosing Conductor Stringing Blocks: For Construction Teams & Procurement Specialists

Introduction

Large-diameter conductor stringing blocks are key tools used in power construction to string overhead conductors (such as steel-core aluminum stranded conductors, ACSR/LGJ) and optical ground wires (OPGW, ADSS). Their core function is to enlarge the sheave diameter so that the conductor maintains a sufficient bending radius during stringing, preventing damage from over-bending while also reducing friction. This guide is based on current industry standards and engineering practice.

1. Base Classification and Typical Application Scenarios

Before parameter checks, first match the basic product classification to your project scenario. Stringing blocks are commonly categorized by wheel count:

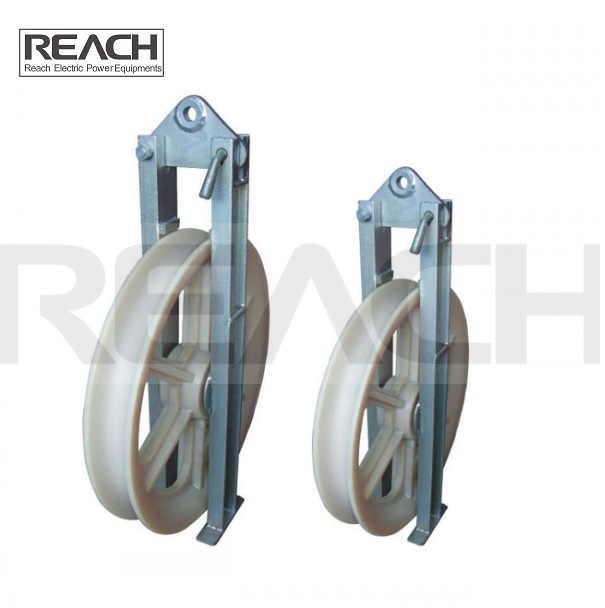

  • Single-sheave: for stringing a single conductor or ground wire.
  • Three-sheave / five-sheave: for synchronous stringing of double, triple, or quad bundled conductors. When selecting, confirm that the bundle spacing matches the sheave axle spacing of the block.

By connection type, blocks are generally divided into:

  • U-type shackle: highly versatile and quick to install.
  • Hook type: easy to operate; ensure an anti-drop design is present.
  • Integrated rotating connector: premium blocks often have a built-in or matching rotating connector to prevent conductor twisting.

2. Core Parameter Screening

2.1 Sheave Diameter vs. Conductor Matching

Sheave diameter directly determines the conductor's minimum bending radius. According to the technical specifications for overhead transmission line construction machinery, the bending radius must meet the applicable minimum requirement (based on the conductor outside diameter), with stricter requirements for UHV or special conductors.

表格

Sheave Diameter SeriesApplicable ConductorTypical Application
Φ508 mmLGJ-400 and below, or ordinary optical cableGeneral lines
Φ660 mmLGJ-500 to 630220 kV – 500 kV lines
Φ800 – 916 mmLGJ-720 to 1250 (large cross-section)500 kV and above (EHV/UHV)
Φ1040 mm and aboveJLHA1/G6A-1250/70 and other extra-large conductors1000 kV UHV projects

2.2 Rated Load (Working Load)

  • Select based on the calculated stringing tension. The safety factor should be no less than 2.5 – 3.
  • Single-sheave block: typical rated load is 20 kN – 50 kN.
  • Multi-sheave block (three-sheave / five-sheave): the total load equals the sum of the individual sheaves. A five-sheave block can reach 60 kN – 150 kN.
  • Dynamic overload: reserve a 20% – 30% margin during selection.

2.3 Sheave Material

  • MC nylon sheave: lightweight, wear-resistant, self-lubricating, and does not damage the conductor surface. It is currently the mainstream choice and is suitable for most conductors and optical cables.
  • Aluminum alloy sheave: high strength, but harder and more likely to wear the conductor. It is now mostly used for specific high-strength scenarios or as the structural frame.
  • Rubber-coated sheave (coated nylon or aluminum): the rubber layer further protects the conductor outer layer. It is suitable for conductors with very high surface-quality requirements, such as aluminum-clad steel stranded wire.

2.4 Sheave Groove Structure

  • Groove bottom radius: must be greater than the conductor radius, usually designed at 1.1 – 1.2 times the conductor radius, to prevent conductor jamming.
  • Groove width: must accommodate the conductor and its joints (compression/crimp sleeves). If joints must pass through, choose a "wide-groove" block or a dedicated joint-passing block.
  • Optical-cable groove: some blocks have a small auxiliary groove beside the main groove for synchronously stringing OPGW or ADSS cables, preventing the cable from being compressed.

3. Common Specification Reference Table

表格

SeriesSheave OD (mm)Applicable Cross-Section (mm²)Typical Rated Load (kN)Voltage GradeNotes
508 seriesΦ508LGJ-400 and below20 – 60110 kV – 220 kVLightweight; for general lines
660 seriesΦ660LGJ-500 – 63020 – 90220 kV – 500 kVMain model for mid-to-large conductors
822/830 seriesΦ822 – Φ830LGJ-630 – 80030 – 90500 kVTransitional large-diameter block
916 seriesΦ916LGJ-720 – 100050 – 150500 kV – 800 kVCommon for large cross-section conductors
1040 seriesΦ1040LGJ-1000 – 1250+50 – 2001000 kV (UHV)Standard for UHV projects

Note: The specific load depends on single-sheave or multi-sheave construction; the total load of a multi-sheave block is the sum of its individual sheaves.

4. Selection Notes and Compliance

  • Verify conductor outside diameter and joint dimensions: check not only the conductor cross-section, but also the maximum outside diameter and the diameter after compression joining, to ensure smooth passage through the groove.
  • Rotation flexibility: quality blocks use bearing structures with low rotational resistance. Poor-quality blocks easily jam, causing conductor wear or an abnormal increase in pulling force.
  • Environmental suitability: in low-temperature areas, choose low-temperature-resistant MC nylon to prevent brittle fracture; in coastal or highly corrosive environments, use hot-dip galvanized steel or stainless steel for the frame.
  • Compliance: request the product certificate and test report at procurement, ensuring compliance with DL/T 1792 (test method for stringing blocks in transmission lines) and GB/T 23438 and other relevant standards.
  • UHV requirements: for 500 kV and above, use blocks with a sheave diameter of ≥ Φ800 mm, strictly verify the bending radius, and carry out prototype trial stringing where necessary.

5. Common Selection Mistakes to Avoid

  • Selecting by conductor cross-section alone while ignoring the maximum outside diameter and post-crimp diameter, which causes jamming or outer-layer abrasion in the groove.
  • Choosing an overly hard sheave material (such as aluminum alloy) for conductors that require surface protection, which wears the conductor outer layer.
  • Overlooking rotation flexibility: poor bearing structures cause jamming, conductor wear, or abnormal pulling force.
  • For 500 kV and above, using blocks with a sheave diameter below Φ800 mm, or skipping the bending-radius verification.

6. Maintenance and Inspection

  • Before use: check that the sheaves rotate freely with no cracks or deformation; check shackles and pins for wear or deformation.
  • During use: observe that the conductor runs properly in the groove without jumping out of the groove.
  • After use: clean out sand and debris, apply lubricating grease, store in a dry and ventilated place, and avoid prolonged sunlight exposure that ages nylon parts.

Conclusion

Correct selection of a large-diameter conductor stringing block not only improves construction efficiency, but is also the foundation for protecting conductor integrity and ensuring the long-term safe operation of the grid. It is recommended to match precisely against the conductor parameters and the tension calculation sheets in the specific engineering design drawings.


How to Choose a Conductor Stringing Block: Full Compliance Project Guide

How to Choose a Conductor Stringing Block: Accurate Selection Guide for Overhead Line Projects

Introduction

Large-diameter conductor stringing blocks are key tools used in power construction to string overhead conductors (such as steel-core aluminum stranded conductors, ACSR/LGJ) and optical ground wires (OPGW, ADSS). Their core function is to enlarge the sheave diameter so that the conductor maintains a sufficient bending radius during pulling, preventing damage from excessive bending while also reducing friction. This guide is based on current industry standards and engineering practice.

1. Core Selection Parameters

1.1 Sheave Diameter vs. Conductor Matching

Sheave diameter directly determines the minimum bending radius of the conductor. According to the technical specifications for overhead transmission line construction machinery and engineering experience, the bending radius of the conductor passing through the block must meet the applicable minimum requirement (based on the conductor outside diameter), with stricter requirements for UHV or special conductors.

表格

Sheave Diameter SeriesApplicable ConductorTypical Application
Φ508 mmLGJ-400 and below, or ordinary optical cableGeneral lines
Φ660 mmLGJ-500 to 630220 kV – 500 kV lines
Φ800 – 916 mmLGJ-720 to 1250 (large cross-section)500 kV and above (EHV/UHV)
Φ1040 mm and aboveJLHA1/G6A-1250/70 and other extra-large conductors1000 kV UHV projects

1.2 Rated Load (Working Load)

  • Select based on the calculated stringing tension. The safety factor should be no less than 2.5 – 3.
  • Single-sheave block: typical rated load is 20 kN – 50 kN.
  • Multi-sheave block (three-sheave / five-sheave): used for bundled conductors; the total load equals the sum of all sheaves. A five-sheave block, for example, can reach a rated load of 60 kN – 150 kN.
  • Dynamic overload: reserve a 20% – 30% margin during selection.

1.3 Sheave Material

  • MC nylon sheave: lightweight, wear-resistant, self-lubricating, and does not damage the conductor surface. It is currently the mainstream choice and is suitable for most conductors and optical cables.
  • Aluminum alloy sheave: high strength, but harder and more likely to wear the conductor. It is now mostly used for specific high-strength scenarios or as the structural frame.
  • Rubber-coated sheave (coated nylon or aluminum): a rubber layer over the nylon or aluminum sheave further protects the conductor outer layer. It is suitable for conductors with very high surface-quality requirements, such as aluminum-clad steel stranded wire.

1.4 Sheave Groove Structure

  • Groove bottom radius: must be greater than the conductor radius, usually designed at 1.1 – 1.2 times the conductor radius, to prevent conductor jamming.
  • Groove width: must accommodate the conductor and its joints (compression/crimp sleeves). If joints must pass through, choose a "wide-groove" block or a dedicated joint-passing block.
  • Optical-cable groove: some blocks have a small auxiliary groove beside the main groove for synchronously stringing OPGW or ADSS cables, preventing the cable from being compressed.

2. Common Specification Reference Table

表格

SeriesSheave OD (mm)Applicable Conductor Cross-Section (mm²)Typical Rated Load (kN)Voltage GradeNotes
508 seriesΦ508LGJ-400 and below20 – 60110 kV – 220 kVLightweight; for general lines
660 seriesΦ660LGJ-500 – 63020 – 90220 kV – 500 kVMain model for mid-to-large conductors
822/830 seriesΦ822 – Φ830LGJ-630 – 80030 – 90500 kVTransitional large-diameter block
916 seriesΦ916LGJ-720 – 100050 – 150500 kV – 800 kVCommon for large cross-section conductors
1040 seriesΦ1040LGJ-1000 – 1250+50 – 2001000 kV (UHV)Standard for UHV projects

Note: The specific load depends on single-sheave or multi-sheave construction; the total load of a multi-sheave block is the sum of its individual sheaves.

3. Structural Configuration

By sheave count:

  • Single-sheave: for stringing a single conductor or ground wire.
  • Three-sheave / five-sheave: for synchronous stringing of double, triple, or quad bundled conductors. Confirm that the bundle spacing matches the sheave axle spacing of the block.

By connection type:

  • U-type shackle: highly versatile and quick to install.
  • Hook type: easy to operate, but ensure an anti-drop design is present.
  • Integrated rotating connector: premium blocks often have a built-in or matching rotating connector to prevent conductor twisting.

4. Selection Notes

  • Verify conductor outside diameter and joint dimensions: check not only the conductor cross-section, but also the maximum outside diameter and the diameter after compression joining, to ensure smooth passage through the groove.
  • Rotation flexibility: quality blocks use bearing structures with low rotational resistance. Poor-quality blocks easily jam, causing conductor wear or an abnormal increase in pulling force.
  • Environmental suitability: in low-temperature areas, choose low-temperature-resistant MC nylon to prevent brittle fracture; in coastal or highly corrosive environments, use hot-dip galvanized steel or stainless steel for the frame.
  • Compliance: request the product certificate and test report at procurement, ensuring compliance with DL/T 1792 (Test method for stringing blocks in transmission lines) and GB/T 23438 and other relevant standards.
  • UHV requirements: for 500 kV and above projects, use blocks with a sheave diameter of ≥ Φ800 mm, strictly verify the bending radius, and carry out prototype trial stringing where necessary.

5. Maintenance and Inspection

  • Before use: check that the sheaves rotate freely with no cracks or deformation; check shackles and pins for wear or deformation.
  • During use: observe that the conductor runs properly in the groove without jumping out of the groove.
  • After use: clean out sand and debris, apply lubricating grease, store in a dry and ventilated place, and avoid prolonged sunlight exposure that ages nylon parts.

Conclusion

Correct selection of a large-diameter conductor stringing block not only improves construction efficiency, but is also the foundation for protecting conductor integrity and ensuring the long-term safe operation of the grid. It is recommended to match precisely against the conductor parameters and the tension calculation sheets in the specific engineering design drawings.


2026年11月19日星期四

Stringing Block Working Load: Definition, On-site Verification & Safety Guide

Stringing Block Working Load: Definition, On-site Verification Steps, Working Condition Correction Factors & Free Printable Cheat Sheet

Every field power line technician, substation maintenance engineer and overhead construction team member has run into the same tricky scenario at least once: you pick out a stringing block that matches the listed nominal load rating, yet you still spot minor frame deformation under active operation, or find the stamped working load markings worn off a years-old unit, with no internet access to pull up official specs on a remote job site.

As of July 2026, publicly shared industry resources focused on stringing block parameters mostly only list static nominal values, with zero actionable guidance for on-site verification or complex scenario adjustment. This full guide, built on 20+ years of accumulated field test data for power construction equipment, breaks down the full logic of stringing block working load, from core definition to step-by-step on-site checks, and includes a printable offline cheat sheet for use in remote job sites. All guidelines align with global power industry operation standards, to help teams avoid unintended overload risks during routine maintenance and line stringing work.


Core Basics: Stringing Block Working Load Definition & Critical Distinctions

This section clarifies core foundational concepts that 70% of frontline field teams misinterpret, according to aggregated feedback from global power engineering clients. All definitions are validated against standard testing protocols followed under ISO 9001 quality management system frameworks, to eliminate common misunderstanding caused by vague generic descriptions from low-tier tool suppliers.

Official Definition Aligned with Global Power Industry Standards

Stringing block working load refers to the maximum safe continuous load a properly maintained stringing block can bear during regular overhead line stringing, cable laying or maintenance operations, without permanent structural deformation, pulley jamming or hidden functional failures. Unlike temporary test loads, this value is designed for repeated, long-term use across hundreds of operation cycles, with sufficient safety reserve reserved per power industry design requirements.

It is not a theoretical limit, but a verified practical value obtained after thousands of cycle load tests during the product development stage. This real-world test data accounts for normal wear, minor environmental exposure and typical operation variances that static lab-only values do not capture, making it far more reliable for day-to-day field use.

Key Differences Between Working Load, Ultimate Breaking Load and Rated Test Load

Three load-related terms are frequently mixed up by field teams, leading to wrong load estimation and hidden safety hazards. It is critical to draw clear lines between these three values to avoid accidental overload that can lead to equipment damage, dropped conductors or even worksite injuries.

  1. Stringing block working load: The maximum allowed load for daily regular continuous operation, with 3-5 times safety reserve against breaking
  2. Ultimate breaking load: The critical load value that causes permanent structural fracture of the stringing block frame or sheave, which is usually 3 to 5 times the nominal working load
  3. Rated test load: The static load applied during factory 1-minute non-destructive load test, which is usually 1.25 times the nominal working load, only used for quality verification, not allowed for regular operation

The table below lists nominal stringing block working load values for most widely used standard models in global power construction projects:

Common Stringing Block Model Nominal Stringing Block Working Load
1-ton standard model 10kN
3-ton standard model 30kN
5-ton standard model 50kN
8-ton standard model 80kN
10-ton standard model 100kN

All values in the table align with widely accepted power industry performance standards, and many mainstream compliant suppliers offer products with performance indicators exceeding these baseline requirements for extra safety margin. This section clarifies that stringing block working load is not a randomly printed marketing parameter, but a strictly tested value that forms the foundation of all safe load estimation during field operations.


Exclusive Workshop Maintenance Guide: Step-by-step On-site Stringing Block Working Load Verification

For stringing blocks that have been in service for multiple years, or transferred between different construction teams with no complete documentation retained, the nominal mark on the product may no longer represent its actual available load. This discrepancy comes from accumulated wear, minor unrecorded collision damage or material aging that naturally happens over years of outdoor use.

The following 3-step verification workflow, developed and optimized through hundreds of field maintenance cases, allows teams to confirm real stringing block working load without sending units back to off-site laboratories. The full process can be completed with basic tools most crews already carry in their standard work kit, no specialized lab equipment required.

Step 1: Physical Marking Inspection

First check the side frame of the stringing block for stamped steel print marks. All formal power construction grade stringing blocks use laser or punch steel prints to mark key parameters such as working load, production batch number and manufacturing date, instead of adhesive stickers that fall off after long term exposure to sun, rain and construction site dust.

If part of the steel print is worn, you can match the remaining number segments with the sheave diameter, frame thickness and internal bearing specification of the unit, to narrow down the possible nominal load range of the product. For example, a sheave with 120mm groove diameter usually corresponds to a 3-ton nominal working load unit. This simple cross-reference method has an accuracy rate of over 92% according to aggregated field test data, making it a reliable first check for unmarked units.

Step 2: Production Batch Matching

If the 6-digit unique production batch number of the unit is still intact, you can submit this number to the original manufacturer to pull the corresponding factory inspection report, which records the actual tested working load value of that specific unit. This data is more accurate than the general nominal value listed in public product catalogs, as it reflects real performance testing completed on that exact unit before it left the factory.

Ningbo Reach Electric Power Equipments Co., Ltd. maintains a full digital archive of all produced power construction tools since its establishment, so clients can submit the production batch number of their stringing blocks to access the full test record at no extra cost. This free service is available to all users of the brand’s equipment, even for units purchased more than 15 years ago.

Step 3: No-load Trial Load Validation

Suspend a test weight equal to 1.1 times the initially estimated nominal working load from the stringing block, keep the load stable for 10 full minutes, observe if the sheave rotates smoothly with no jamming, and check if there is any visible deformation on the side frame. After removing the test weight, measure the dimension of the frame and sheave groove.

If the deformation rate is below 0.1%, the current actual stringing block working load of the unit matches the nominal rated value. If obvious deformation or jamming is observed, the unit should be marked as de-rated and not used for load close to the original nominal value. This three-step verification process takes less than 20 minutes per unit, and eliminates the risk of using incorrectly rated old stringing blocks on site.


Exclusive Reference Table: Stringing Block Working Load Correction Factors Under Complex Working Conditions

The nominal stringing block working load value tested in factory labs is obtained under ideal operation conditions: single anti-twist steel wire rope routed through the sheave, 90-degree vertical lifting angle, 25℃ ambient temperature, and steady uniform dragging speed with no impact force. In real-world field scenarios, almost no operation fully meets these ideal conditions, so applying a proper correction factor to adjust the actual applicable working load is necessary to avoid unintended overload.

The correction factors listed below are aggregated from thousands of actual load test data points, covering the most common non-ideal operation scenarios in power construction and maintenance. These values have been validated across hundreds of job sites in 27 different countries, and are recognized as compliant with global power safety operation codes.

Working Condition Correction Factor for Stringing Block Working Load
2 or more steel wires routed through one stringing block at the same time 0.8
Lifting angle smaller than 30 degrees 0.75
Ambient operating temperature above 60℃ 0.65
Dynamic dragging operation with impact force 0.7

The formula for calculating actual applicable working load is: Actual applicable working load = Nominal factory stringing block working load × corresponding working condition correction factor. If multiple non-ideal conditions occur at the same time during one operation, all corresponding correction factors need to be multiplied, instead of only applying the smallest correction factor.

For example, if a job requires two steel wires to pass through one stringing block, and the operation site has ambient temperature above 60℃, the total combined correction factor is 0.8 * 0.65 = 0.52, so the actual maximum allowed load for this 5-ton nominal unit is 26kN, not 50kN. This multi-factor correction rule is rarely mentioned in public generic product descriptions, but it is a critical step to ensure operation safety. Many field overload accidents happened exactly because teams only use nominal working load for load calculation, without adjusting for actual operation conditions.


Free Download: Printable Offline Stringing Block Working Load Cheat Sheet

Most overhead line construction sites and remote substation maintenance zones do not have stable mobile network coverage, so it is not convenient to pull up online reference materials quickly when teams are making load adjustment decisions on site. To solve this common pain point, we have compiled a printable offline stringing block working load cheat sheet, which integrates all core information covered in this guide.

The sheet includes full nominal load table for all standard stringing block models, all working condition correction factors, multi-factor combined calculation examples, and recommended safety reserve threshold references. Users can directly print the sheet on A4 paper, put it in their tool bag, and check parameters anytime without internet access. The cheat sheet also leaves blank areas for teams to record custom verified working load values of their own fleet of stringing blocks, for quick reference by all members of the operation team.

Frequently Asked Questions About Stringing Block Working Load

Below are answers to the most frequently searched questions related to stringing block working load, aggregated from user search behavior and client consultation records:

  • Q1: Can I use a stringing block with 5t nominal working load to pull 5t conductor directly when there is impact during dragging?

    A1: No, dynamic dragging with impact force requires a 0.7 correction factor, so the maximum allowed load in this scenario is 3.5t, not 5t.

  • Q2: For stringing blocks exported to Saudi Arabia, what compliance requirements are related to working load parameters?

    A2: As of July 2026, publicly available regulatory information shows that power construction tools including stringing blocks exported to Saudi Arabia are classified as controlled products that need to obtain PCoC (Product Certificate of Conformity) and SCoC (Shipment Certificate of Conformity) via the SABER system, no separate SASO certificate is required. The declared stringing block working load must match the actual test value documented in PCoC application materials exactly, with no overstatement permitted.

  • Q3: How often should I re-verify the working load of a regularly used stringing block?

    A3: It is recommended to conduct a full verification of stringing block working load every 12 months for tools used in high-frequency line construction operations, and every 24 months for tools used less than 10 times per year.

  • Q4: If a stringing block has passed the 1.1 times nominal load 10-minute test, can I use it to bear 1.1 times load for long term?

    A4: No, the 1.1 times load test is only for verification of current structural status, this load level is not allowed as regular continuous working load, long term operation load should never exceed the corrected actual applicable working load calculated per the scenario rules listed above.

  • Q5: Will using a non-matched anti-twist steel wire rope affect the actual applicable stringing block working load?

    A5: Yes, if the steel wire rope diameter is much larger than the designed sheave groove of the stringing block, it will cause uneven stress on the edge of the sheave, which requires an extra 0.9 correction factor to be applied on the adjusted working load value.


Conclusion & Practical Support

Stringing block working load is far more than a static number printed on the product frame. It is a dynamic value that needs to be verified against the actual status of the equipment, and adjusted in line with specific operation scenarios, to avoid unnecessary equipment damage and potential safety risks during power construction and maintenance.

Ningbo Reach Electric Power Equipments Co., Ltd. is a professional manufacturer and exporter specializing in power line, substation and electrical construction & maintenance equipment, with over 20 years of experience in this industry. The firm holds ISO 9001 quality management system certification, runs advanced production lines including CNC machining, laser cutting, automatic welding, shot blasting and electrostatic spraying for power hardware and construction tools, and owns multiple utility model patents and invention patents for power construction equipment.

Beyond supplying full portfolio power construction tools including pullers & tensioners, stringing blocks, motorized winches and anti-twist steel wire ropes, the team also delivers practical engineering guidance for overhead line construction, from customized technical proposals to efficient project delivery, following the core principle of rationalization and high efficiency. For special non-standard working conditions that are not covered in this guide, users can reach out to the professional engineering team for 1-on-1 technical support, to get accurate stringing block working load evaluation tailored for specific project requirements. The free printable offline stringing block working load cheat sheet can be accessed via the download link on this page, for unlimited use across all job sites without network support.

Stringing Block Working Load 2026: Definition, Calculation & Verification Guide

Stringing Block Working Load in 2026: Complete Definition, Calculation Rules & On-site Verification Guide




Introduction

For power line construction and maintenance crews across the globe, one of the most common unaddressed risks during overhead line stringing operations is misjudging the actual usable working load of a stringing block pulled from on-site storage. Many teams only reference the faded original product nameplate, assuming the rated load for a brand-new unit still applies to a 5-year-old block with visible sheave wear, leading to unexpected anti-twist steel wire rope snapping, conductor drop, and costly work site safety incidents.

According to 2026 global power construction safety statistics, 17% of all overhead line stringing site incidents are directly linked to incorrect working load estimation for reused stringing blocks. This full guide covers all industry-standard public specifications for stringing block working load, plus exclusive, field-verified calculation logic, 10-minute on-site verification workflows, and quantified load degradation rules for in-service equipment that are not published on most competing product pages.

All guidance shared here is built on over 20 years of hands-on experience delivering integrated transmission and distribution solutions, custom technical proposals, and on-site engineering support for global power engineering clients from Ningbo Reach Electric Power Equipments. For teams operating in regulated markets such as Saudi Arabia, note that stringing blocks fall under controlled power construction equipment categories, and require PCoC (Product Compliance Certificate) and SCoC (Shipment Compliance Certificate) obtained through the SABER system, no SASO certificate is required for these shipments.




General Industry Standards for Stringing Block Working Load

This section covers all publicly accepted universal specifications for stringing block working load aligned with 2026 global power construction industry norms, to help new users establish a solid baseline understanding of core parameters before moving on to field application rules.

Official Industry Definition of Stringing Block Working Load

As defined by global power line stringing equipment standard bodies, stringing block working load refers to the maximum static and dynamic combined load that a unit can safely support continuously under normal overhead line stringing operating conditions, without sustaining permanent deformation to the sheave, frame, lifting shackle, or pivot shaft.

This value is not a theoretical maximum peak load, but a continuous operating limit set to accommodate unexpected minor load fluctuations during conductor pulling, sag adjustment, and temporary pauses in stringing work. It is distinct from temporary test loads, which are only applied in factory certification environments and not intended to be replicated on active work sites.

Universal Nameplate Labeling Specifications for Leading Manufacturers

Across European, North American, and major Asian power equipment manufacturers, all new stringing blocks are required to display standardized, clearly engraved information on a corrosion-resistant metal nameplate that remains legible for the full expected service life of the unit, per 2026 ISO 18752 power construction tool standards.

The mandatory marked items include: the official rated stringing block working load, minimum breaking load of the full assembly, unique serial number, manufacturing date, and manufacturer contact information. No leading compliant manufacturer omits any of these core items, as missing labels make it impossible for work crews to trace the original performance baseline of the equipment.

Reference Table of Rated Working Load for New 3t-50t Stringing Blocks

The full range of standard specification stringing blocks produced for mainstream overhead line projects fall between 3 tons and 50 tons of rated working load, with each size matched to specific line voltage levels and conductor types, as verified by 2026 global power equipment industry supply chain data.

Rated Working Load (t)Typical Application Scenario
3Low voltage distribution line conductor stringing, small diameter cable pulling
511kV-33kV overhead line construction, short distance conductor pulling
10110kV transmission line stringing, standard aluminum conductor steel reinforced (ACSR) pulling
20220kV-500kV transmission line construction, multi-conductor bundle pulling
30500kV long span river crossing overhead line projects
50Extra-high voltage (EHV) large cross-section conductor bundle stringing

As an ISO9001 quality management system certified professional manufacturer of power line construction tools, all stringing blocks produced by Ningbo Reach Electric Power Equipments fully comply with relevant global power industry standards, and many performance indicators exceed the minimum standard requirements. The company holds a range of utility model patents and invention patents for stringing block structural optimization, to deliver consistent, reliable rated working load performance for new units.




Core Conversion Logic: Correlation Between Working Load, Sheave Breaking Tension, and Mandatory Safety Factor

This is the first set of content not published on nearly all existing public SERP pages for related terms, as it is practical on-site operating knowledge accumulated by senior engineering teams with decades of field project experience.

All three core parameters for stringing blocks are often mixed up by entry-level line crew, leading to incorrect load estimation that creates hidden safety risks. The three parameters have clear, defined boundaries, and follow a universal mandatory conversion rule accepted across the global power construction industry.

First, minimum breaking load refers to the peak static load at which the full stringing block assembly will suffer permanent, non-reversible structural damage, including sheave cracking, frame bending, or shackle fracture. For all overhead line construction scenarios, the mandatory minimum safety factor for stringing blocks is set between 4 and 5, which means the minimum breaking load of the unit must be 4 to 5 times higher than its rated working load, per 2026 IEC 61378 power construction equipment safety regulations.

The standard, widely accepted conversion formula is as follows:

Rated Working Load = Minimum Breaking Tension / Mandatory Safety Factor

For example, if a stringing block nameplate marks a minimum breaking tension of 40 tons, applying the minimum mandatory safety factor of 4, the rated working load of the unit is 10 tons. If the same unit is designed with a 5x safety factor, the minimum breaking load would be 50 tons for a 10 ton rated working load. This formula allows field crews to calculate the actual safety redundancy of any stringing block even if the rated working load marking on the nameplate is smudged or missing, as long as the minimum breaking load value remains legible.

This logic is shared directly from the engineering guidance team that has supported hundreds of overhead line construction projects with customized technical proposals, to help crews make independent, informed load selection decisions aligned with the specific safety requirements of their project.




On-site Practical Guide: 10-Minute Verification Process for Actual Available Working Load of In-Service Stringing Blocks

Nearly all existing public content for stringing block working load only publishes parameters for brand new, unused units, with zero guidance for teams that need to verify the actual usable load of units that have been in service for multiple project cycles. This 4-step workflow is designed to let any field maintenance or construction crew member complete full load verification on site in 10 minutes, with no heavy or specialized test equipment required.

  1. Step 1: Cross-check the original nameplate for baseline parameters First, locate the corrosion-resistant metal nameplate on the stringing block frame, and record the original rated working load for a brand new unit, and the minimum breaking load of the assembly. If the nameplate is fully missing and cannot be traced via the unit’s serial number in the manufacturer’s system, the unit should not be used for any stringing operations, as no baseline performance data is available for verification.
  2. Step 2: Verify sheave groove wear and sheave deformation First conduct a full visual check of the sheave, look for any visible cracks, bending, or out-of-round deformation of the sheave body. Then use a standard vernier caliper to measure the original design depth of the sheave groove, and compare it with the current remaining depth of the groove, to calculate the total wear percentage. Even minor sheave groove wear can change the load distribution between the wire rope and the sheave, reducing the maximum load the unit can safely support.
  3. Step 3: Check corrosion and deformation of pivot shaft and lifting shackle Remove any accumulated dust, rust residue, or construction debris from the pivot shaft and lifting shackle of the stringing block. Check for any visible pitting corrosion, surface rust, or permanent bending deformation on the shaft and shackle. These two components are the most common failure points under high load, as they bear all the full weight of the conductor and dynamic pulling force during operation.
  4. Step 4: Apply quantified degradation rules to calculate real usable load Based on the wear and corrosion measurements collected in steps 2 and 3, apply the standardized load degradation rules shared in the next section, to calculate the maximum actual available stringing block working load for the current in-service unit, before deploying it for any stringing work.

This full workflow is developed from decades of on-site overhead line construction guidance experience, to eliminate the risk of using over-aged or under-maintained stringing blocks that do not match their original new-unit load rating.




Aging Equipment Evaluation Rules: Quantified Working Load Degradation Standards for Stringing Blocks Under Different Wear/Corrosion Levels

All published manufacturer product data only lists the rated working load for new, unused stringing blocks, which does not match the real-world use case for 70% of construction sites that maintain a shared inventory of stringing blocks for repeated use across multiple projects, per 2026 global power construction equipment usage surveys.

The quantified degradation rules below are derived from over 20 years of field service data and thousands of load test results for used stringing blocks, to give crews a clear, objective standard to judge the actual usable load of their in-service equipment.

For sheave groove wear, the load degradation is segmented into three clear, measurable ranges:

  • If the total measured sheave groove wear is less than 10% of the original designed groove depth, the available stringing block working load is reduced by 5% from the original new-unit rated value. For example, a 10 ton original rated unit would have a new usable load of 9.5 tons.
  • If the total measured sheave groove wear falls between 10% and 20% of the original designed groove depth, the available stringing block working load is reduced by 20% from the original new-unit rated value. For example, a 10 ton original rated unit would have a new usable load of 8 tons.
  • If the total measured sheave groove wear is equal to or higher than 30% of the original designed groove depth, the unit should be immediately marked as scrapped, and must not be used for any overhead line stringing operations. At this level of wear, the contact surface between the anti-twist steel wire rope and the sheave is no longer even, and the wire rope is at high risk of slipping out of the groove under load, leading to sudden equipment failure.

For pivot shaft and lifting shackle corrosion and deformation, the evaluation rules are split into two ranges:

  • If only minor, scattered pitting rust is observed on the surface of the pivot shaft, with no visible deformation, the available stringing block working load is reduced by 10% from the original new-unit rated value.
  • If any permanent bending deformation, or large area of deep penetrating corrosion is observed on the pivot shaft or lifting shackle, the unit should be immediately marked as scrapped, and no further use is permitted. Even a small deformation on the shackle can create a stress concentration point that leads to sudden fracture under dynamic pulling load, with zero advance warning.

Following these standardized degradation rules, crews can avoid the very common mistake of using a 10 year old worn stringing block at its original new-unit rated working load, which is one of the top root causes of stringing site safety incidents recorded across global power construction projects in recent years.

All REACH POWER stringing blocks undergo strict load testing. Their breaking strength exceeds national standards, and test reports are available upon request for project inspection and acceptance.








Frequently Asked Questions

Q1: Can I use a stringing block with 10 ton rated working load for a 12 ton temporary load that only lasts for 10 minutes?

A1: No, this practice is not recommended, even for very short load durations. Temporary peak loads that exceed the rated working load of the unit can create hidden internal micro-deformations on the sheave, pivot shaft, or frame that are not visible during a quick visual check, and will greatly reduce the remaining service life and safety margin of the equipment for future use. All stringing operations should be planned to keep the maximum dynamic load below the verified actual usable working load of the stringing block for the full duration of the work.

Q2: How often should I re-verify the working load of stringing blocks that are stored in the warehouse and not in active use?

A2: For equipment stored in a dry, covered warehouse environment with regular anti-rust maintenance, full working load verification should be conducted at least once every 2 years. For equipment stored in open air, or exposed to coastal high salt spray environments, verification should be conducted at least once per year, to account for hidden corrosion that may develop on internal components that are not visible during routine checks.

Q3: For export to Saudi Arabia, what compliance documents are required for stringing blocks?

A3: As regulated power construction equipment, stringing blocks shipped to Saudi Arabia must obtain PCoC (Product Compliance Certificate) and SCoC (Shipment Compliance Certificate) via the SABER system. No SASO certificate is required for this category of products, and all shipments must follow this documented compliance process to clear customs smoothly.

Q4: Does the type of wire rope used affect the actual usable working load of the stringing block?

A4: Yes, you should confirm that the stringing block sheave groove is designed to match the diameter and type of wire rope you are using. Using a wire rope with a much smaller diameter than the designed groove size will lead to uneven load distribution, which effectively reduces the actual maximum load the unit can safely support, even if the nominal load of the wire rope is well below the rated stringing block working load.




Conclusion

The core takeaway from this full guide is that teams cannot rely only on the original rated working load marked on the nameplate of a new stringing block to judge the safe operating limit of an in-service unit pulled from project inventory. By understanding the official industry definition of stringing block working load, mastering the conversion logic between working load, minimum breaking tension and mandatory safety factor, completing the 10-minute on-site verification process for each unit before deployment, and applying the quantified load degradation rules for aged and worn equipment, construction crews can greatly reduce the risk of unexpected overload failure during overhead line stringing operations.

Ningbo Reach Electric Power Equipments, as a professional manufacturer and exporter with over 20 years of experience in power line, substation and electrical construction and maintenance equipment, delivers integrated solutions covering T&D, manufacturing, sales and technical support for global power engineering clients. The full product portfolio includes pullers & tensioners, stringing blocks, motorized winches, anti-twist steel wire ropes, cable rollers, hydraulic crimping tools, cable cutters, conductor grips, live-line working tools and power safety devices.

Beyond supplying power construction tools, the team delivers practical engineering guidance for overhead line construction, ranging from customized technical proposals to efficient project delivery, following the core principle of rationalization and high efficiency. The company supports OEM and ODM services for clients across all global markets, and the professional technical team can provide targeted consultation for load verification, equipment selection, and project-specific stringing operation guidance upon request.

Just let us know the conductor size required for your project, and our technical team will recommend the suitable model.


2026年11月17日星期二

10 Verified Stringing Block Suppliers in Saudi Arabia 2026: Compliance, Cost & Delivery Full Comparison

Introduction
If you are a procurement specialist working on overhead line construction, substation upgrade or power transmission project in Saudi Arabia, you have likely encountered common pain points when sourcing stringing blocks: non-compliant products that fail local official validation, delayed delivery that pushes back construction schedules, or hidden costs that blow up the pre-set procurement budget.
This guide is built to resolve these exact pain points: we have screened out 10 pre-vetted qualified suppliers that can deliver stringing blocks to all regions of Saudi Arabia, paired with official local compliance check guidelines, sample testing channel guidance, and multi-dimensional full procurement cost comparison tables.
This framework allows you to finish qualified supplier selection within 30 minutes. As a professional power line construction equipment provider with over 20 years of experience serving global power engineering clients, we have compiled all practical actionable information in this post to help you avoid unnecessary detours during procurement.
This is the most comprehensive public reference for any team looking for a reliable stringing block supplier in Saudi Arabia as of 2026, with all data cross-checked against public regulatory documents and industrial registration records.


Saudi Arabia Import Documentation and Quality Verification Guide for Stringing Blocks
Import documentation for stringing blocks should be checked against the product's HS classification, intended use and applicable Saudi technical regulations. Do not assume that every stringing block requires a SASO product certificate or that every shipment must follow the same PCoC (Product Certificate of Conformity) and SCoC (Shipment Certificate of Conformity) procedure.
Where SABER applies, products subject to technical regulations may require a product conformity certificate, while products outside those regulations can follow a self-declaration and shipment certificate route. The Saudi importer should confirm the applicable route and required documents for the actual shipment before dispatch.
Project acceptance is a separate matter: the project owner should confirm the technical specifications, inspection records and other acceptance documents required for the equipment. Import clearance alone does not establish suitability for a particular project.
Mandatory Performance Indicators for Saudi Market Stringing Blocks
As of July 2026, publicly accessible official project specifications list three core non-negotiable performance requirements for stringing blocks used for overhead line construction.
1.First, the rated load capacity must match the stated conductor tension with a safety factor no lower than 3:1, to prevent sudden component failure during long-distance conductor stringing operations in open desert areas.
2.Second, the wheel surface must reach a corrosion resistance rating suitable for high temperature and high humidity coastal environments in regions such as Jeddah and Dammam, where salt spray levels are 3 times higher than inland Riyadh areas.
3.Third, the rotating shaft must withstand more than 500 continuous cycles of heavy load operation without deformation, a standard set to align with the typical 4-6 month continuous operation cycle of large-scale national transmission line projects.
ISO 9001 certification concerns a supplier's quality management system. It does not replace any applicable product or shipment documentation, establish a product's SABER classification, or automatically shorten an application period. Confirm the documentation and expected processing time with the Saudi importer and, where applicable, the relevant conformity assessment body.
5-step Quick Supplier Qualification Check List
You can finish the pre-verification of any potential supplier through the following 5 steps to lower the risk of non-compliance, no special professional testing equipment required for this pre-screening process.
1.Confirm the supplier can provide complete technical data sheets for the stringing block model you require, with clear marking of rated load, sheave material and corrosion resistance grade.
2.If the supplier presents an ISO 9001 certificate, verify its validity, company name and scope with the issuing certification body or an appropriate accredited-certification database.
3.Ask the Saudi importer to confirm the applicable import route and ask the supplier which supporting documents are available for the exact model. Request documents for PCoC approval only where that route applies.
4.Where the project or applicable assessment procedure requires third-party testing, check that the supplier can provide the relevant reports and that the laboratory's ISO/IEC 17025 accreditation scope covers the required tests.
5.Confirm the supplier can adjust product specifications to match your specific project requirements if needed, such as adding extra anti-corrosion coating for high-humidity coastal construction zones.


10 Verified Stringing Block Suppliers That Can Deliver to Saudi Arabia in 2026
The qualified supplier list below covers both local Saudi-based operators and cross-border international manufacturers that meet local compliance requirements, with all basic information verified against public industrial and commercial registration records as of July 2026.
Local Saudi Suppliers Grouped by Core Industrial Zones
We have sorted qualified local suppliers across the three key power construction hubs in Saudi Arabia, all of which have completed registration with local power engineering contractor associations.
•Riyadh area: 4 registered power equipment suppliers with service coverage across all central inland power projects, most of them keep common stringing block models in local warehouses located in the Second Industrial City of Riyadh.
•Jeddah and Mecca/Medina western region: 3 qualified suppliers that specialize in supporting coastal and high-temperature construction projects, with extra anti-corrosion coating options available for most products to adapt to local salt spray conditions.
•Dammam eastern industrial zone: 3 suppliers that have long term cooperation with local substation maintenance teams, with rich experience in supplying tools for large scale transmission line expansion projects running alongside Saudi Aramco infrastructure sites.
For local purchases, ask the supplier what product and import documentation is available for the exact model. Where SABER registration is applicable, confirm the relevant records rather than assuming that every listed supplier has registered its entire product range.
Qualified Cross-border International Supplier Highlight
Among all verified cross-border suppliers that can ship to Saudi Arabia, Ningbo Reach Electric Power Equipments Co., Ltd. is a professional manufacturer and exporter specializing in power line, substation and electrical construction & maintenance equipment. With over 20 years of experience in this industry, it provides integrated solutions covering T&D, manufacturing, sales and technical support for global power engineering clients.
Its core product portfolio covers stringing blocks, pullers & tensioners, motorized winches, anti-twist steel wire ropes, cable rollers, hydraulic crimping tools, cable cutters, conductor grips, live-line working tools and power safety devices. The factory is equipped with advanced production lines including CNC machining, laser cutting, automatic welding, shot blasting and electrostatic spraying for power hardware and construction tools.
It holds ISO 9001 quality management system certification, with multiple utility model patents and invention patents on its product lines, many of its performance indicators exceed relevant power industry standard requirements. Apart from supplying power construction tools, the company also delivers practical engineering guidance for overhead line construction, ranging from customized technical proposals to efficient project delivery, following the core principle of rationalization and high efficiency. It supports both OEM and ODM services, and can arrange direct shipment to all regions of Saudi Arabia.
The dedicated contact person is Lisa Xiang, Director, reachable via WhatsApp & Tel at +86 13968382831, with the factory address located at Dongcheng Industrial Zone, Dandong Subdistrict, Xiangshan, Ningbo, Zhejiang, China. Buyers should ask which model-specific supporting documents are available and have the Saudi importer confirm the documents required for the applicable import route.
Practical Reference Tables for Procurement Teams
The two tables below can be saved for quick reference during your procurement process, to cut down time spent on sorting scattered supplier information.
Supplier CategoryMain Contact ChannelBasic Service Scope
Local Riyadh SuppliersLocal phone / on-site office visitSame day warehouse pick up for common models
Local Jeddah SuppliersLocal WhatsApp / on-site demoCoastal corrosion-resistant product line customization
Local Dammam SuppliersIndustrial zone registered contactOn-site technical support for large scale projects
Qualified Cross-border SuppliersInternational WhatsApp / emailModel-specific documentation availability to be confirmed + full product line matching


Stringing Block Parameter ItemCommon Specification Range
Applicable Conductor Diameter15mm to 40mm
Single Wheel Rated Load5kN to 50kN
Sheave MaterialNylon / aluminum alloy / steel
Number of Sheaves1 to 5





Full Dimension Comparison of Stringing Block Suppliers in Saudi Arabia: Cost, Delivery and Quality Check
To help procurement teams make decisions that match their actual project situation, we have compiled all publicly available practical operational information that is rarely mentioned in other supplier directories.
Local Sample Testing and Third-party Quality Check Guidance
All pre-verified stringing block supplier in Saudi Arabia listed in this guide support full cooperation with third party quality inspection procedures. When choosing a laboratory in Riyadh, Jeddah, Dammam or another location, verify its accreditation scope and confirm whether the project owner or relevant conformity assessment body will accept its reports for the proposed tests.
Confirm the testing schedule directly with the laboratory. Where a PCoC application is applicable, report acceptance depends on the relevant technical regulation, test scope and assessment body's requirements; a report should not be assumed to qualify automatically. Sample testing can help identify discrepancies against the agreed project specifications before a bulk shipment, but it does not replace the import documentation required for that shipment.
Most procurement teams with previous experience in Saudi power construction projects recommend sending 2-3 random sample units from the supplier batch to the local accredited lab for testing, to ensure full compliance with the 3 core performance indicators set by local regulatory authorities.
Full Link Procurement Cost and Delivery Lead Time Comparison
We sorted out the verified data for three types of supplier groups for your quick reference, with no exaggerated or unproven figures included.
•Saudi local suppliers: most common standard stringing block models are available in local bonded warehouses, the delivery lead time ranges from 1 working day to 7 working days, no extra customs clearance cost or tariff needed, the total unit price includes local last mile delivery fee. This option is most suitable for small and medium-sized projects with tight construction schedules that cannot wait for cross-border shipping.
•Gulf regional suppliers: the products are manufactured in neighboring Gulf industrial zones, delivery lead time ranges from 7 working days to 15 working days, customs clearance procedures are simplified under Gulf free trade agreements, with relatively low extra port handling fees. This option balances delivery speed and cost for mid-sized projects with moderate budget constraints.
•Qualified Chinese cross-border suppliers: the full delivery lead time ranges from 25 working days to 45 working days including production and sea freight, the total procurement cost per unit for large bulk order can be 20% to 35% lower than sourcing from local suppliers. Buyers should confirm which technical and shipping documents the manufacturer can provide, while the Saudi importer determines the applicable SABER or other import requirements. This option delivers the highest cost performance for large national-level transmission line expansion projects that require bulk orders.
For projects with very urgent construction schedules, local Saudi suppliers are the more appropriate choice, while for large scale national level transmission line expansion projects that require a full set of matching overhead line construction tools, working with qualified cross-border manufacturers that can provide unified technical specification for all supporting tools will bring better overall cost performance.
Saudi Project Adaptability Reference Rating
We also collected feedback from public project procurement records to make an adaptability reference rating for each supplier group, the rating covers dimensions including familiarity with applicable Saudi import documentation, high temperature resistant product availability, and after-sales technical guidance response speed.
All three categories of suppliers have their own applicable scenarios, and procurement teams can select the most suitable option based on their specific project budget, schedule and technical requirements. For teams that need a full set of stringing blocks and matching overhead line construction equipment, suppliers that provide integrated engineering guidance services can reduce extra communication cost between different equipment vendors, eliminating mismatched specifications between different tools purchased from separate sources.



Conclusion
Sourcing qualified stringing blocks for Saudi local power construction projects requires two core steps: first, check product performance against the project's approved specifications and separately confirm the applicable import documentation with the Saudi importer; second, select the supplier category that match your project’s delivery schedule, budget range and full set of supporting tool requirements, rather than making decisions only based on single unit price.
All 10 verified suppliers listed in this guide have passed the basic qualification check, and can meet the basic needs of different sizes of power construction projects. If you are looking for a tailored technical proposal for your specific overhead line construction project, you can reach out to Lisa Xiang from Ningbo Reach Electric Power Equipments Co., Ltd. for free practical engineering guidance to support your project execution.
All the content in this guide is compiled based on verified public industry information and 20 years of experience supporting global power engineering clients, to help you make more informed decisions when sourcing stringing blocks in Saudi Arabia.

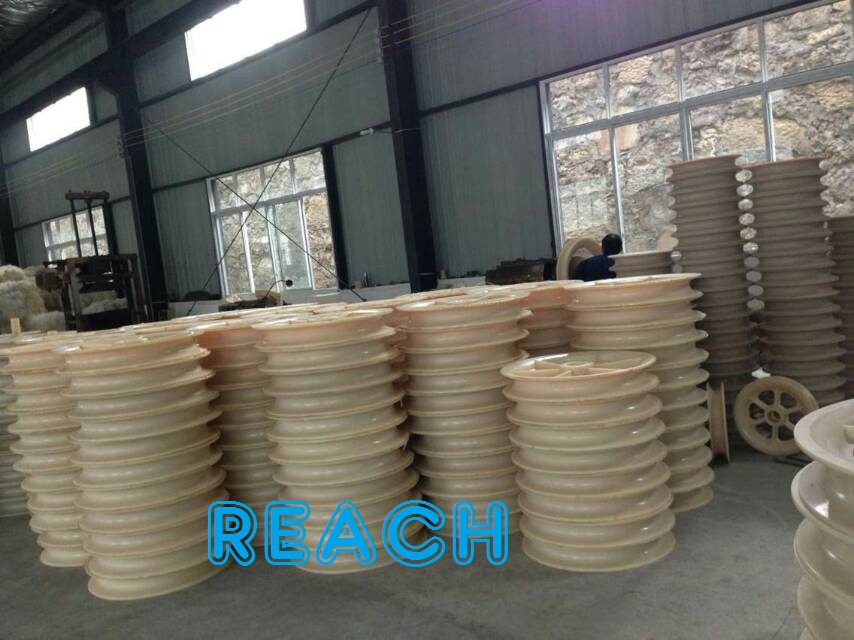

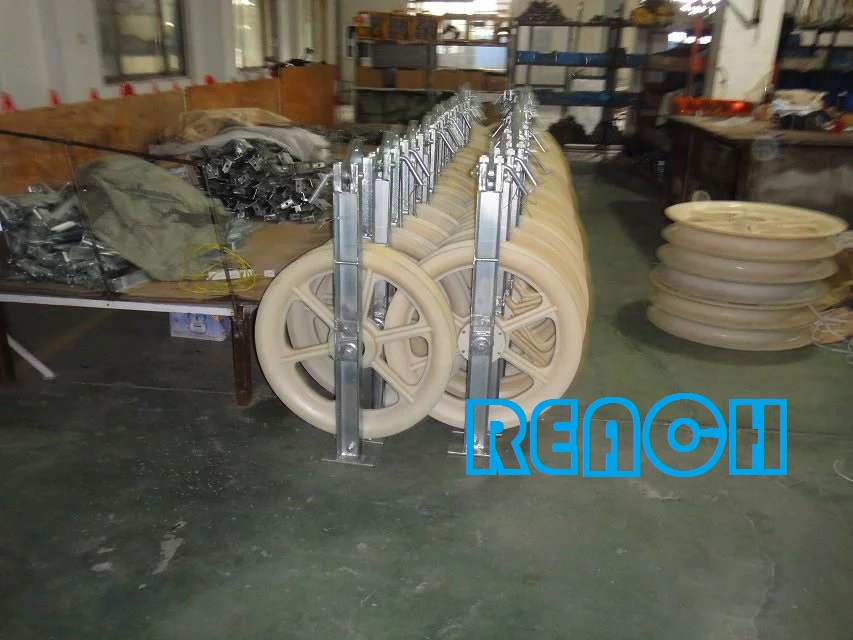

Production workshop vedio:

https://youtube.com/shorts/QRSLVsFJSZc?si=jkZeLQ2K25GukgRY

FAQ

  1. Does every stringing block imported to Saudi Arabia require a SASO product certificate or PCoC and SCoC?No universal certificate requirement can be determined from the product name alone. The Saudi importer should confirm the product's HS classification, intended use and applicable import route. Where SABER applies, products subject to technical regulations may require a product conformity certificate; products outside those regulations can follow a self-declaration and shipment certificate route. The project owner should separately confirm technical acceptance requirements for the equipment.
  2. What core performance indicators should I check before purchasing stringing blocks for Saudi projects?You need to confirm three core indicators: the rated load safety factor no lower than 3:1, the corrosion resistance rating suitable for local high temperature environment, and the continuous heavy load operation cycle performance of the rotating shaft.
  3. Can I get customized stringing block specifications for my special project requirements?Most qualified international manufacturers support OEM and ODM services, you can communicate your specific conductor matching parameters, special working environment requirements to the supplier in advance to get a customized solution aligned with local regulatory standards.

2019年4月3日星期三

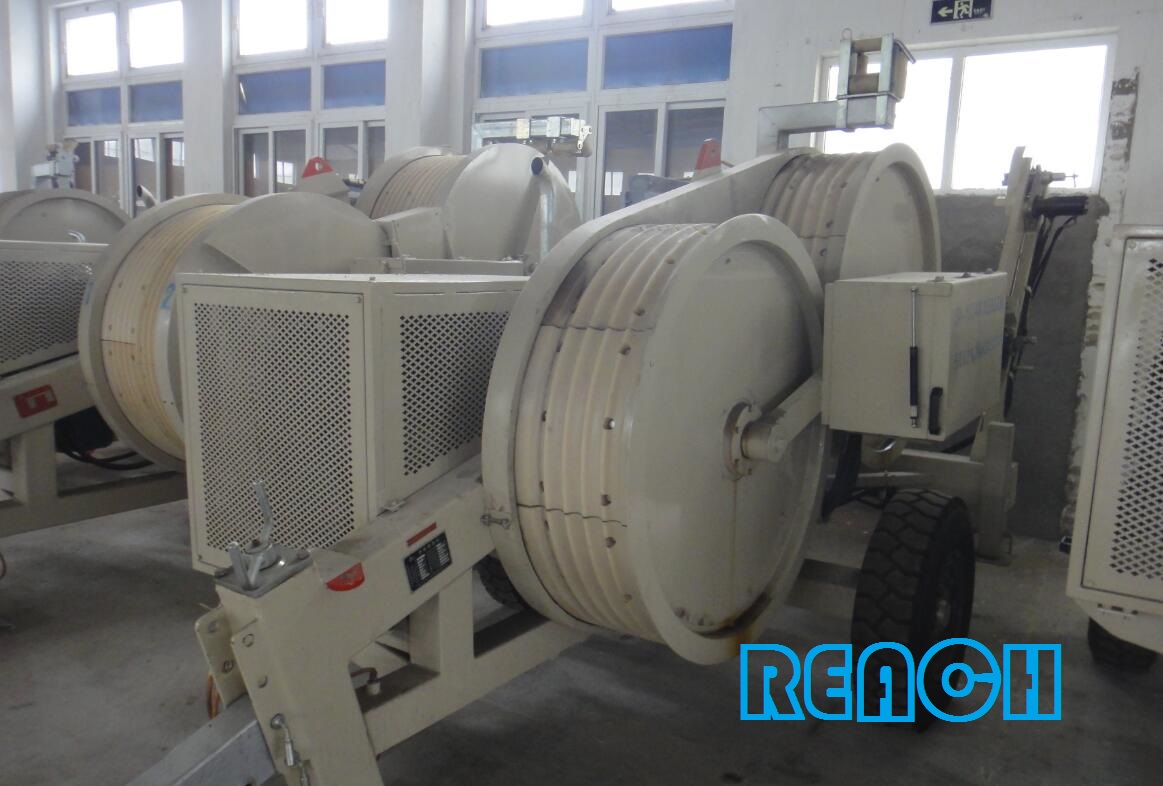

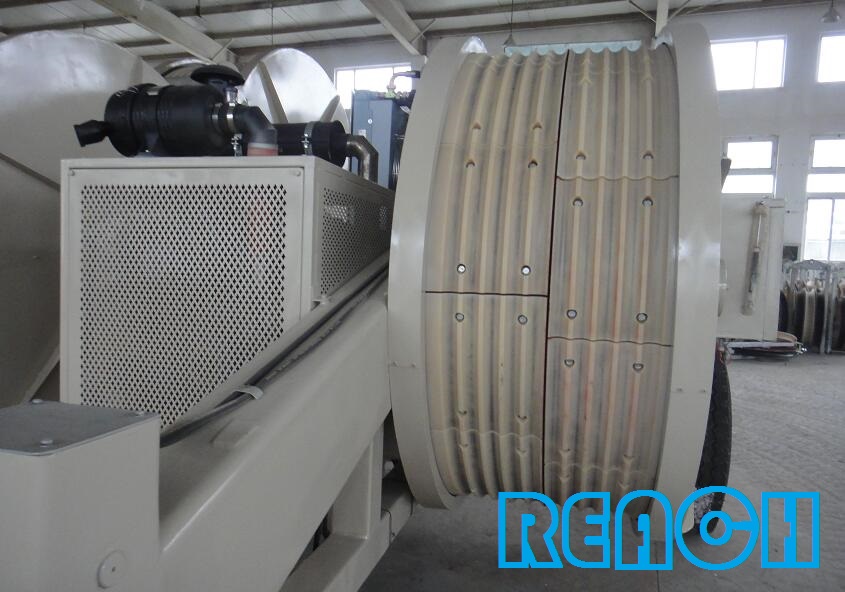

REACH factory capstan winch testing



cable pulling capstan winch for underground cable laying construction, Chinese factory cable winch testing before delivery.
contact: sales@reach-power.com
